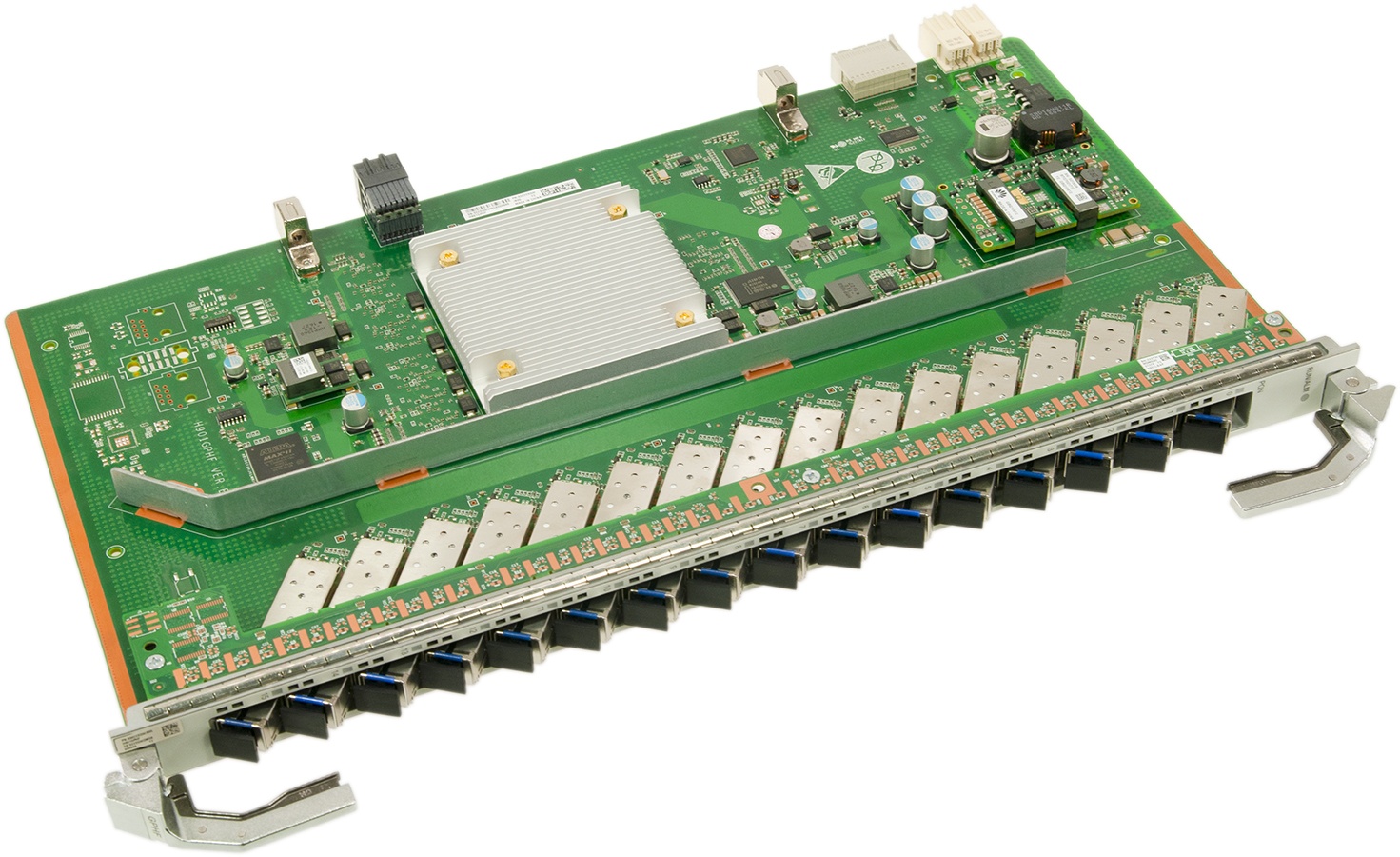

H901GPHF to karta PON przeznaczona do OLT Huawei serii MA5800.
Karta zawiera 16 modułów GPON C+.

The H901GPHF board supports the following features and specifications:

16 GPON SFP ports

A maximum of 1:128 split ratio

Class B+/C+/C++ one-fiber bi-directional optical modules

Received signal strength indicator (RSSI) detection and optical signal transmission control of the optical module

ONU-based traffic shaping

Temperature reading and high-temperature alarm

Automatic power-off in case of high temperature

Upstream and downstream forward error correction (FEC)

Type B/Type C protection

L3VPN and D-CCAP networking

A maximum of 20 km transmission distance

Rogue ONU detection

Optical power budget of the GPON port

Class B+ optical module with a 28.5 dB power budget (used in most cases)

Class C+ optical module with a 32 dB budget (used for long-distance transmission)

Class C++ optical module with a 35 dB budget (used for long-distance transmission)
